Cut Out Switch
HOME > PRODUCT > Cut Out Switch

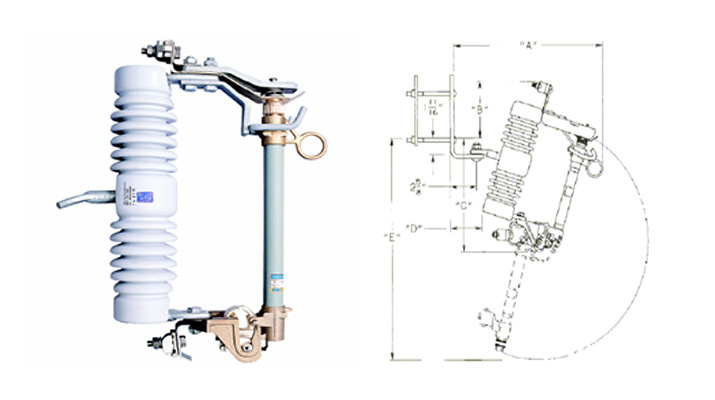

Dimensin & Config. (COS)
| MaximumDesign Voltage | Nominal System Voltage | Continuous Current | Rated Impulse Withstand Voltage (BIL) | Interrupting Capacity (Asym) | Leakage Distance to Ground | Net Weight |
|---|---|---|---|---|---|---|
| 15kV | Thru 14.4kV | 100A | 110kV | 10,000A | 8.5inch | 7.6kg |
| 27kV | Thru 24.9kV | 100A | 125kV | 8,000A | 13inch | 9.0kg |
| 27kV | Thru 24.9kV | 100A | 150kV | 12,000A | 19inch | 13.5kg |
